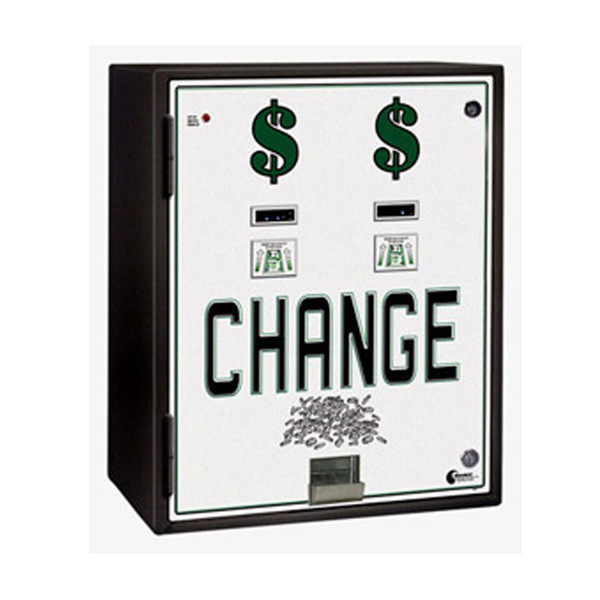

MC820-DA Bill Acceptor-Dispenser
Front Load / 2 Mega-Hoppers / 2 Bill Acceptors

The MC820-DA is our high security, heavy-duty front load cabinet made with heavy gauge steel and two crank locks. It is a great machine that can be used in commercial coin laundries, zoos, aquariums, haunted houses, libraries, batting cages, and miniature golf courses or other locations where a secure cabinet is essential. With two steel mega-capacity coin hoppers, holding up to 18,000 quarters ($4,500 capacity), the MC820-DA can dispense coins, tokens or a combination of coins and tokens. Some customers have even set up the MC820-DA to dispense a combination of dollar coins and quarters.

 All Modular series machines have our Fast Vend Shut-Off/Auto Reset feature that helps minimize loss due to stringing.

Standard Configuration:

• Accepts: $1, $5, $10 and $20 bills
• Pyramid Apex-7000 Bill Acceptor
• Capacities:
  • Stackers(x2 total): 2,000 new bills
  • Hoppers(x2 total): 18,000 quarters ($4,500)
• Two year limited warranty
• ETL certified in accordance with UL and CSA standards
• Tokens or Coins on Cash Acceptance

Upgrade Options:

• Mars AE2000/T7-Talos Acceptor
• Pyramid APEX-7400 Acceptor
• Bill Acceptor Opening Cover Plate
• Electronic Coin Acceptor
• Medeco Lock Plugs for T-Handle Locks
• EF+ Module (with Remote Notification)
• MC Series Relay Kit (requires EF+ Module)
• Portable Audit Printer Kit (requires EF+ Module)
• Coin Hopper Locking Hopper Lids
• Non-Resettable Bills In/Coins Out Counter Kit
• Resettable Bills In/Coins Out Counter Kit
• Transcient Surge Suppressor
• 26” Locking Secure Vending Base

Machine Specifications

• Height: 34" (86.3 cm)
• Width: 26" (66 cm)
• Depth: 18" (45.7 cm)
• Empty Weight: 300 lbs. (136 kg)
• Footprint (floor area space): 468 square in (3.25 square ft; 3016 square cm) = 26" (66 cm)W x 18" (45.7 cm)D

Additional Details
